STRIKE100 is a large capacity Rotary Evaporator born for the chemistry and designed for any industrial process need.
3.3 borosilicate glass and PTFE allow aggressive substances treatment.
Works efficiently both under vacuum or any ambient conditions. 50 or 100 L evaporation flask rotation results in a forced convection and homogenous liquid distribution, preventing sedimentation.
High evaporating exchange surface is guaranteed. The sealing system ensures perfect vacuum tightness and maintenance‐free operations. Glassware can be customized to meet any client specific needs.
STRIKE20 is a 20L Rotary Evaporator (i.e. Rotovap) designed for industrial evaporation and R&D purposes suiting all the process phases.
3.3 borosilicate glass and PTFE allow solvent concentration or purification also with aggressive solvent.
Works efficiently both under vacuum and any ambient conditions. 6, 10 or 20L evaporation flask rotation results in a forced convection and homogenous liquid distribution, preventing sedimentation while ensuring high evaporation exchange surface. The sealing system enables perfect vacuum tightness. No maintenance needed.
Glassware can be customized to best meet your specific requirements.
Strike 20 and Strike 100 Rotary Evaporators protect against any risks during operations.
Strike 100 heating bath is covered with a transparent shield providing utmost protection against glass breakage and spray at high temperature. Lifted by means of a hydraulic system which, in case of power failure or doors opening, lowers automatically to prevent liquid overheating, and the evaporation process will immediately stop.
Rupture disk prevents glassware breakage in case of accidental overpressure or malfunctioning.
Plastic coated glassware is not needed.
Strike 100’s 8Kw electric heater ensures continuous evaporation even under the worst operating conditions.
The sealing systems are made of self‐lubricating material for perfect vacuum‐tightness, so maintenance is not needed.
Gaskets, o-rings or consumables do not require replacement.

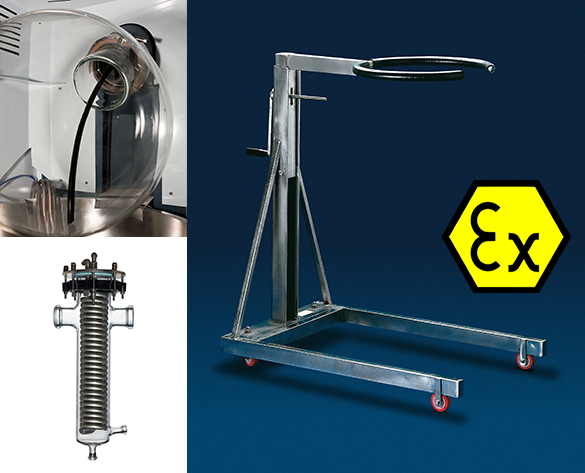

The glass condenser enables the largest exchange surface in order to obtain the best condensation, speed and recovery rates.
Optional: glass and stainless steel condenser for a faster recovery in ethanol applications.
We can customize your evaporator providing a highly efficient glassware with exchange surfaces larger than 2.5 m2.
Fill the flask with a liquid sample without disassembling it.
By opening the stopcock, you can fill the sample directly into the evaporating flask and then adjust the inlet flow thanks to the vacuum inside the instrument.
The cooling thermal bath (optional) permits the following:
50 L or 100 L
evaporation vessel
1.43 m²
exchange surface
up to 18 L/hour
recovery capacity
(ethanol 96%)
(ethanol 96%)
